Installing Metal Valve Stems in Rubber Stem Tubes

This example shows the installation of Model A reproduction valve stems into rubber tubes for 4.75x19 tires. The same approach has been used to install original metal stems into tubes for 30x3.5" Model T clincher tires. (This is just the way I do it - use it at your risk :-) )

Note that these steps are for a tube that has a difficult to remove brass inner stem. Other tubes can be cut off almost flush with the bottom of the valve stem and then the brass part of the stem will easily twist out. When you try the first tube you will find out how easily (or not) the brass stem can be removed. If the brass stem is not easy to twist out (which you hope would be the case with a good tube) it will be necessary to cut around it before twisting it out. A good way to do this is with some brass tubing. Hopefully this will all be clear when looking at the pictures below...

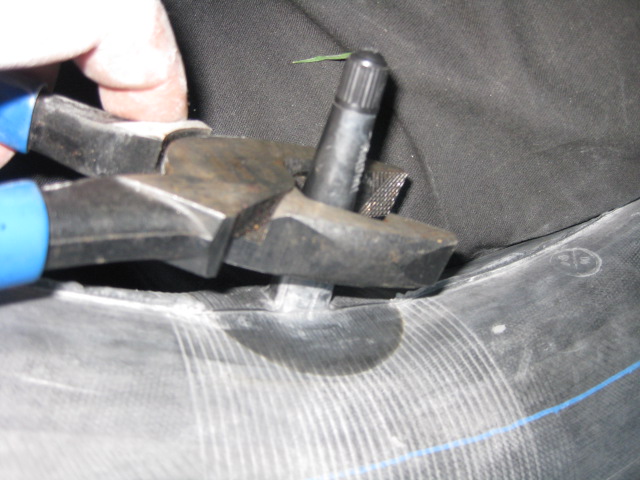

0 - Cut off the stem about a 1/4" from the bottom.
metal stem 0

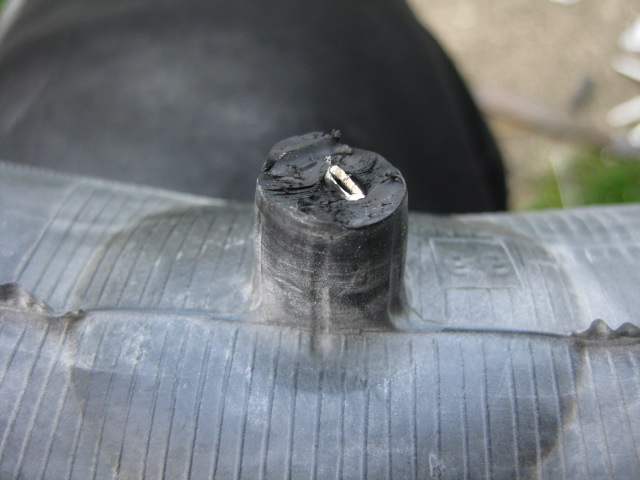

1 - This leaves a stub with the (now crushed) brass tube in the center.
metal stem 1

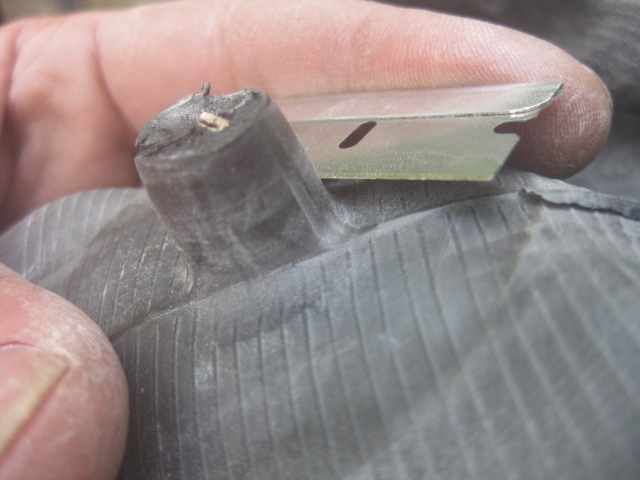

2 - Slice around the base with knife close to the base (the easier the stem comes out the closer that it can be cut to the base).
metal stem 2

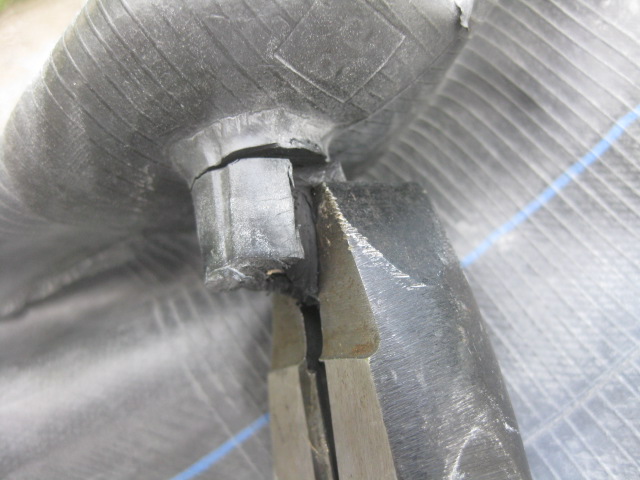

3 - Cut away the rubber.
metal stem 3

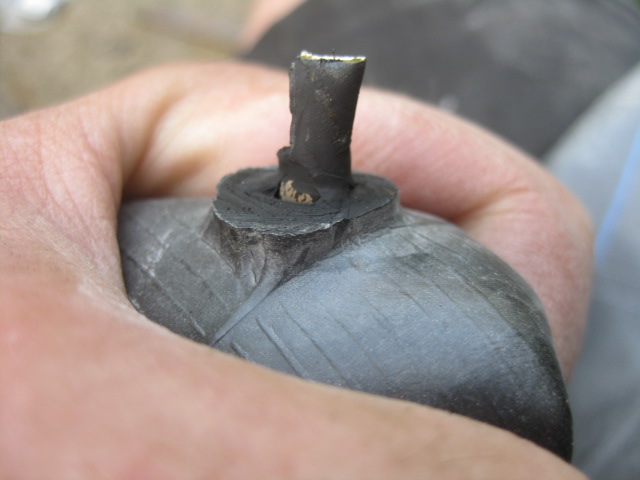

4 - Brass tube is now left.
metal stem 4

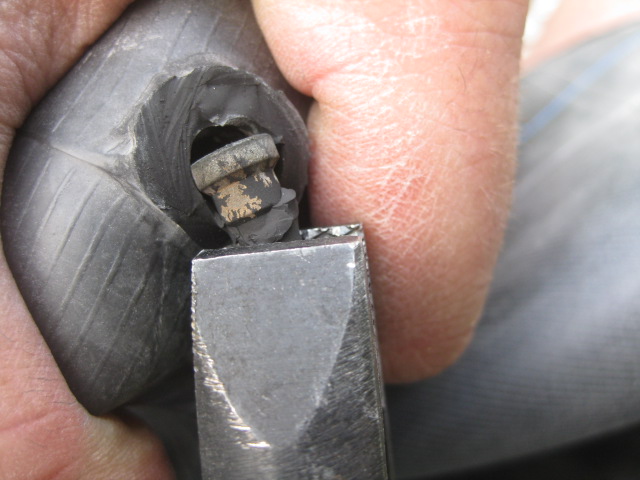

5 - Twist the brass tube out. Cut around the edge if needed (see next step below), but the goal is to leave the inside of the hole as round and smooth as possible.
metal stem 5

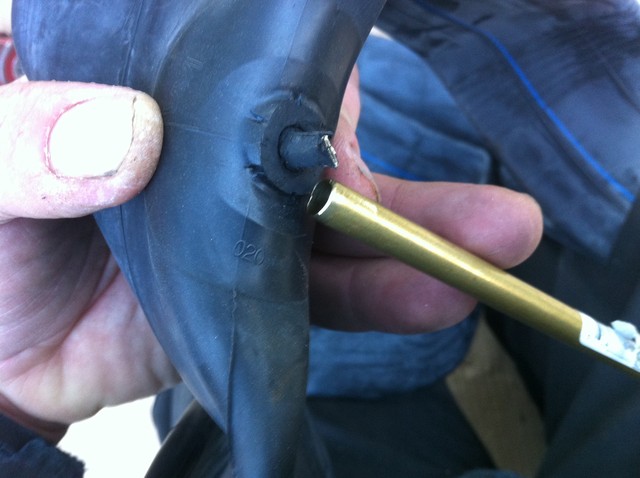

6 - If the brass stem is not easy to remove (which is probably a good thing if you were going to use the rubber stem instead of removing it) it will be necessary to cut it out somewhat so that the tube doesn't get a tear and get ruined. I've used a razor blade to do it, but it is hard to keep it round and this leaves places were it can tear. One way to do it is to use some thin brass tubing (5/16" dia) to cut around the stem.
metal stem 6

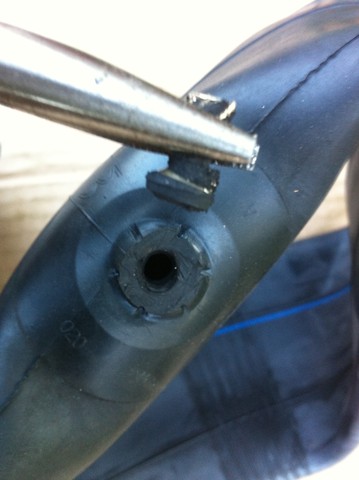

6b - Notice how smoothly the cut is around the stem - this will help keep it from tearing when the new metal stem is installed and later when the tube is inflated.
metal stem 6b

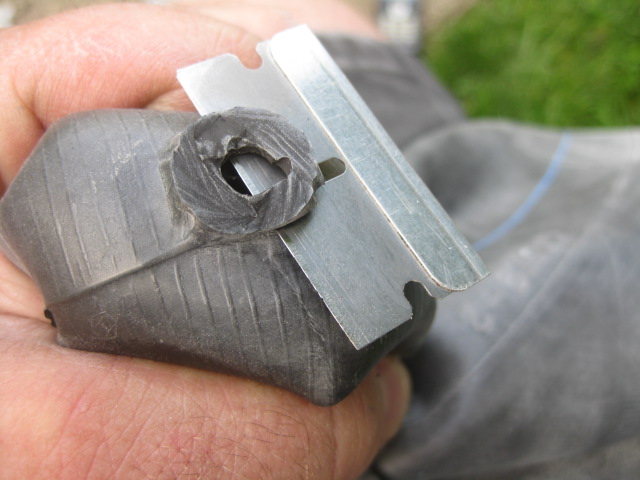

7 - Trim close to the base. These multiple extra cutting steps are not necessary if the brass tubes are easy to remove and don't want to tear up the tube on the way out.
metal stem 7

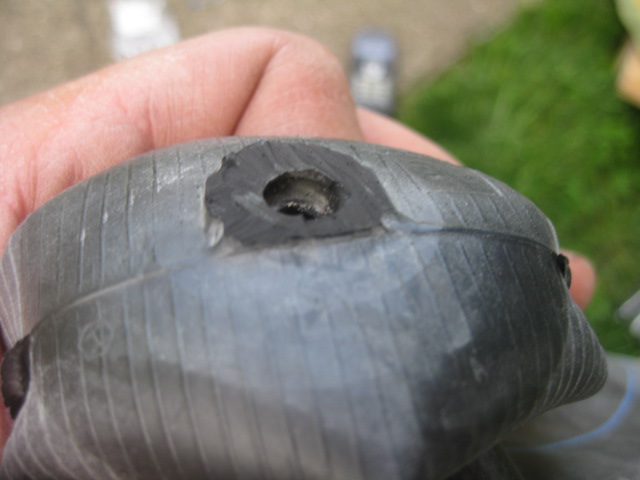

8 - Try to end up with something reasonably flat, close to the surface of the tube.
metal stem 8

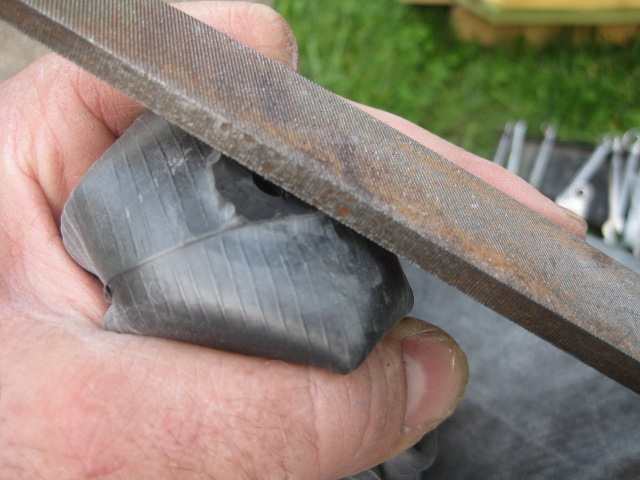

9 - Use a file or whatever you prefer to smooth it.
metal stem 9

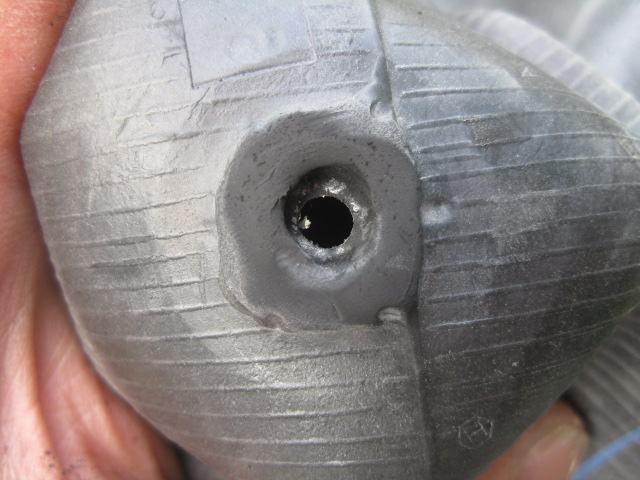

10 - The final result after filing it smooth.
metal stem 10

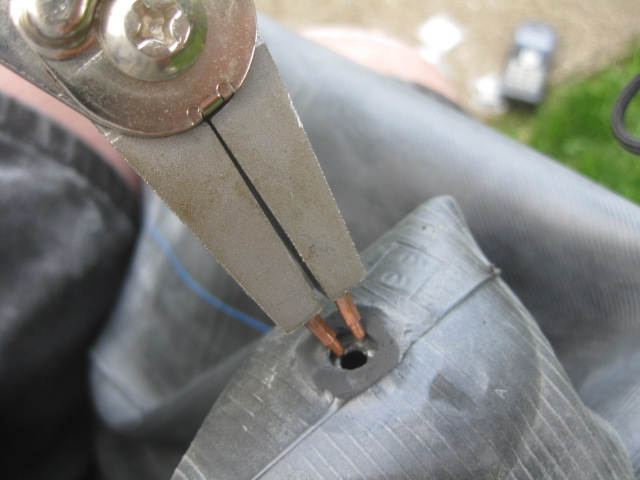

11 - I use snap ring pliers or just needle nose pliers to open up the hole. Others have used two hooks mounted in a vice to pull on either side of the hole to pull it open.
metal stem 11

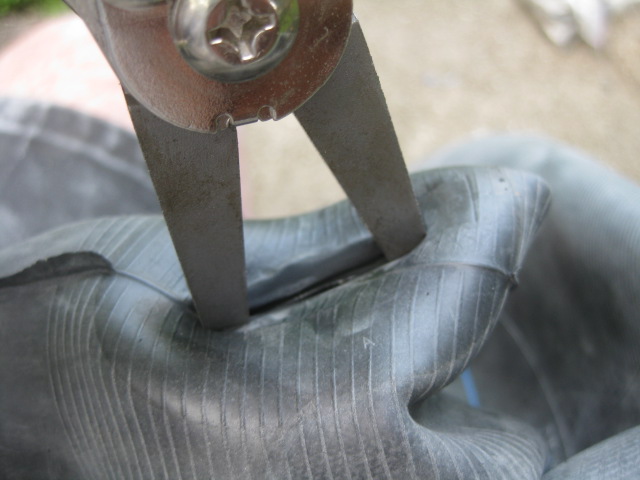

12 - Don't be afraid to stretch it open.
metal stem 12

13 - These pliers open it up just enough to get the stem started in the hole.
metal stem 13

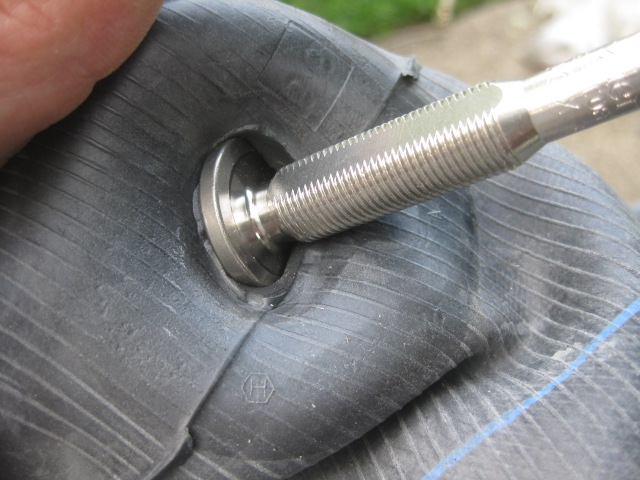

14 - Once the stem is in the hole the pliers can be removed to finish inserting the stem.
metal stem 14

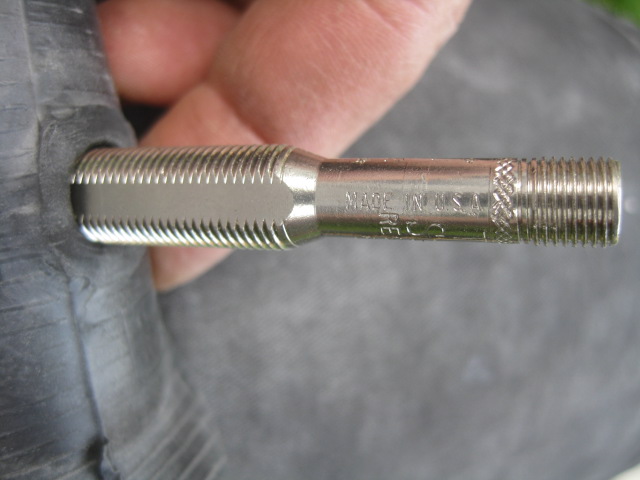

15 - The stem is in the hole and the tube is snugged up right against the stem.
metal stem 15

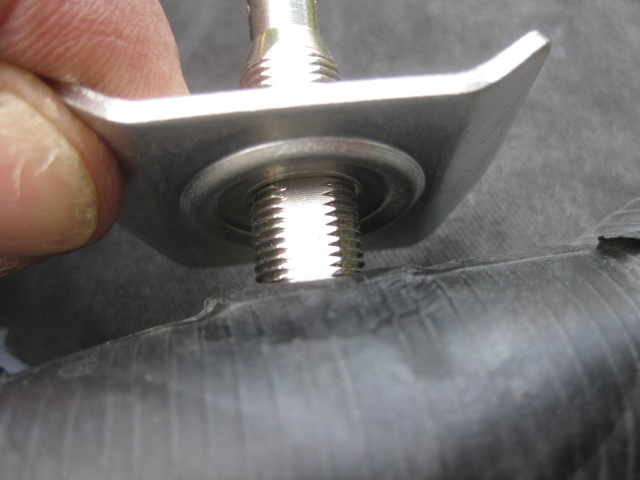

16 - Put on the bridge washer. The ridges in the stem base and the bridge washer are enough to seal the air from coming out. I don't use any sealant because I don't know what will be compatible with the rubber but the results have been fine reusing old stems on clincher tires which get inflated to 65 lbs/psi. I have seen sealant on some old stems and might have used some bead sealer if I had some handy.
metal stem 16

17 - Put on the nut.
metal stem 17

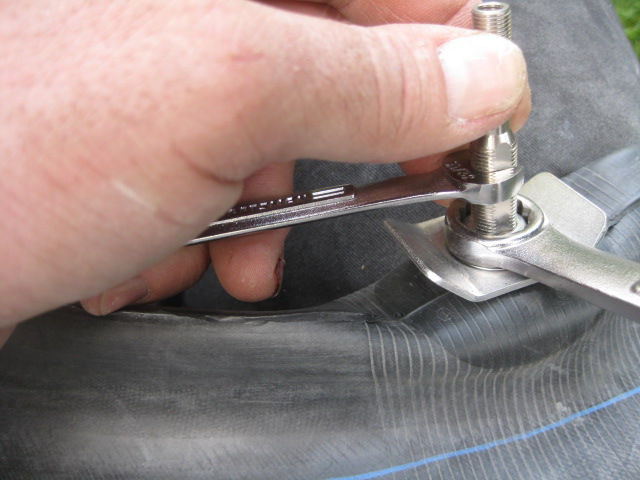

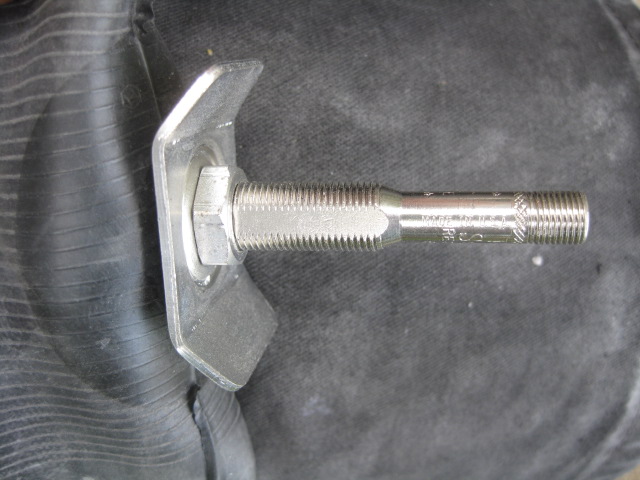

18 - Tighten down the nut. I've heard some people express concern about making it too tight and squeezing out the rubber from between the washer and the base but I don't see that happening when I get it good and tight by hand.
metal stem 18

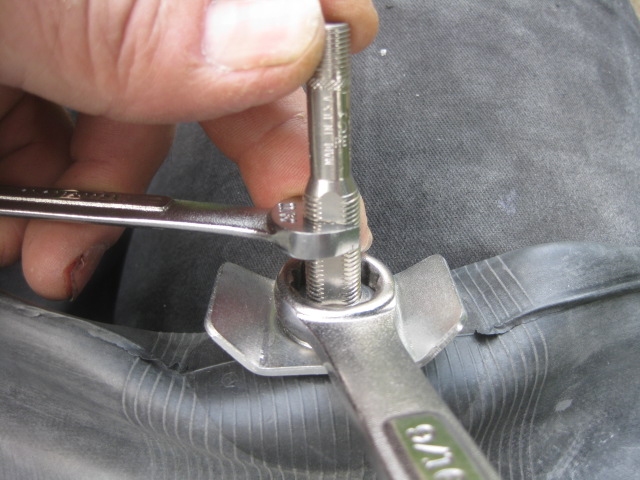

19 - Make sure the stem and washer stay in line with the tube and don't turn as they are tightened.
metal stem 19

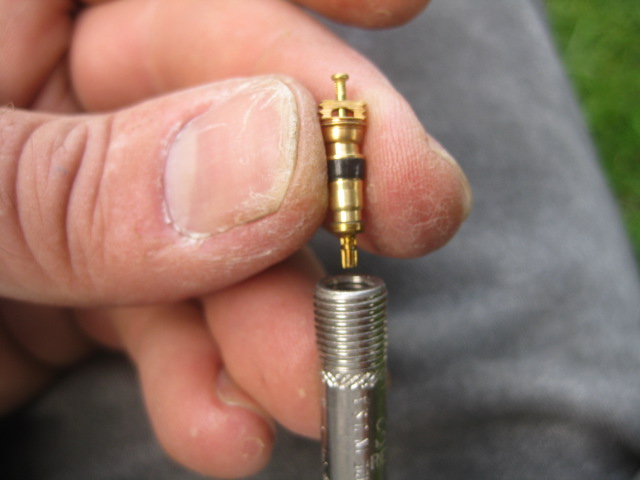

20 - Put in a new Schrader valve (particularly if using old stems).
metal stem 20

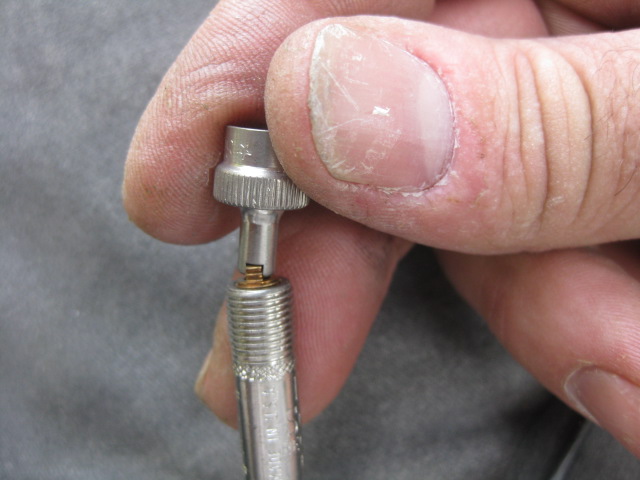

21 - Tighten the valve with the cap.

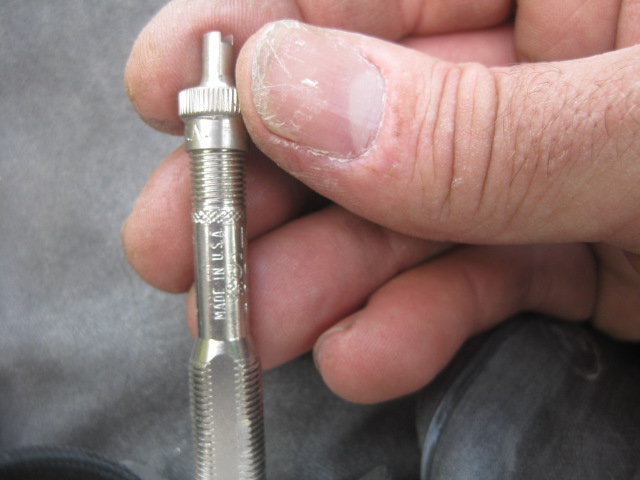

metal stem 21

22 - Put the cap on - it is now ready to mount on the wheel.
metal stem 22
